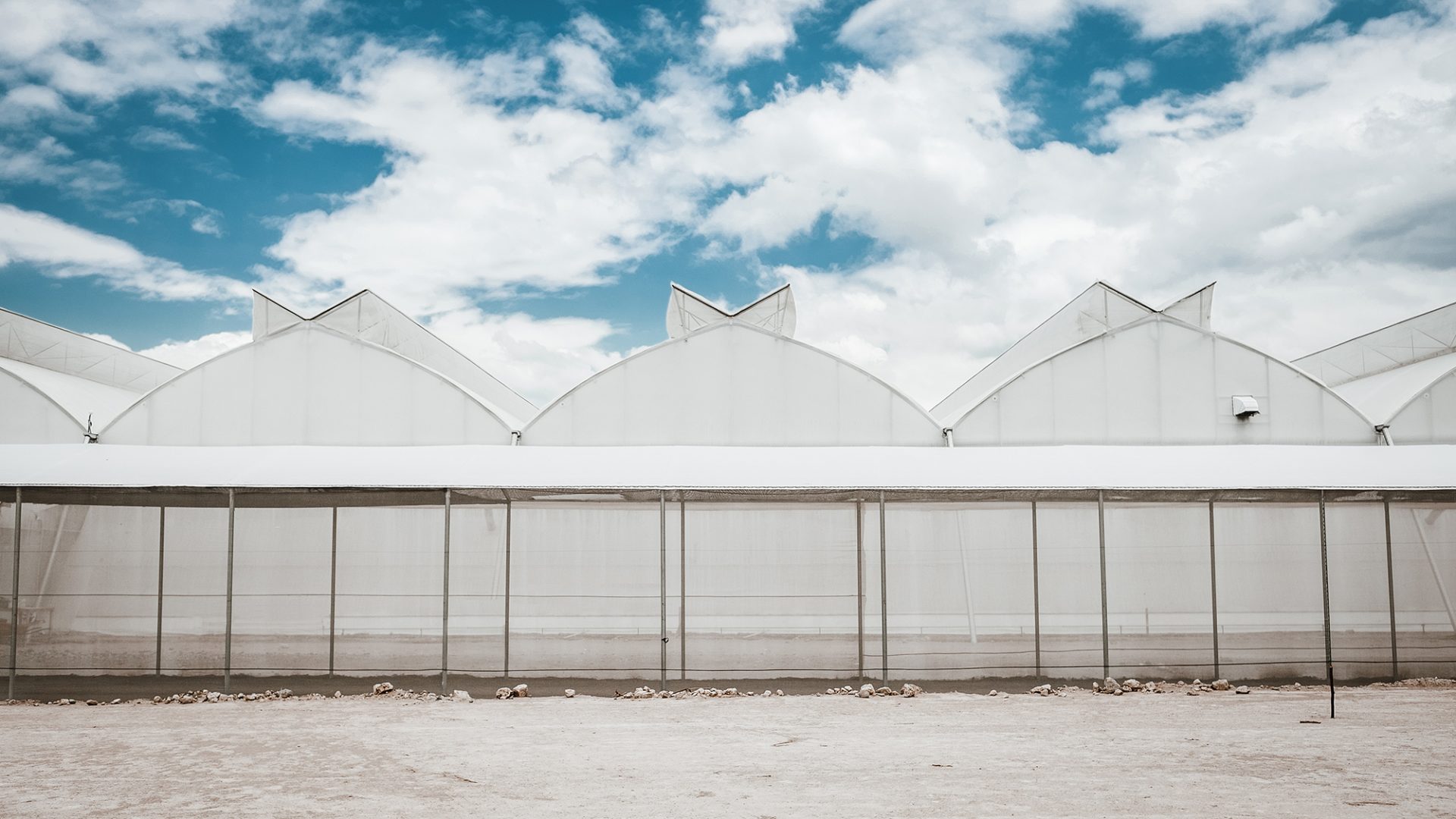

GUTTER CONNECTED GREENHOUSES
Designed to cover large areas, the Luminosa™ gutter-connected greenhouse systems are ideally suited for medium to highly automated operations. This model can be used to group all greenhouse operations under one roof and to facilitate plant handling and phytosanitary management.
Gutter Connected Greenhouse Features
This gutter-connected, multi-span greenhouse is designed to maximize usable cropping space. Available in several widths, up to 16.20 meters – the widest on the market – it offers a range of impressive features:
- Specially designed to withstand wind and snow;
- Improved condensation control;
- Roof that facilitates the installation of polyfilms;
- Columns designed in two parts to facilitate installation and to optimize structural strength;
- A redesigned gutter for greater luminosity and energy efficiency;
- Available tunnel to connect several individual greenhouses;
- Can easily integrate service buildings such as mixing areas for fertilization, conditioning and packing areas, offices or employee rest areas;
- Design adapted to the installation of a disinfection airlock to facilitate the phytosanitary management of crops;
- Designed to maximize usable cultivation space.
- Innovative commercial greenhouse structure
Greenhouse Gutter Systeme Uses
- Suitable for hydroponic or organic crops;
- Suitable for above-ground crops;
- Ideal for commercial production of vegetables, fine herbs, fruits and ornamental crops such as strawberries;
- Improves containment and safety to prevent pests and insects that can harm crops, reducing the need for pesticides and fungicides.
Technical specifications
Available widths
- from 21’4“ (3.7m) to 53’2” (16.20m)
Foundation options
- Anchor plates for existing foundation
- Anchorage tubes for new concrete foundation (columns or continuous foundation)
Covering options
- Single or double polyethylene films
- Single or twin wall polycarbonate sheets
- Single or double ridge vent panels
- Mid-roof vent
- Side roll-up vent (manual or automated)
- Mechanical ventilation (fan, extractor and air circulator)
- Single or double
- Sliding or hinged
Available Gutter Connected Greenhouse Models
Available only in Canada and the United States
Available only in Canada and the United States
Available only in Canada and the United States
Width 9,6m
Width 11m
Width 14,40m
Width 16,20m
Available only in Mexico
A gutter-connected greenhouse is a modular structure made up of interconnected bays that share a continuous roof supported by gutters. This design allows for efficient space utilization, easy expansion, and centralized environmental control, making it ideal for large-scale commercial growing operations.
While gutter-connected greenhouses offer many advantages, they can have some drawbacks, including higher initial construction costs compared to freestanding greenhouses and potential drainage issues if the gutter system is not properly designed or maintained.
The height of gutters in a greenhouse typically ranges from 12 to 18 feet, depending on the model and intended use. This height provides adequate space for ventilation, equipment installation, and the growth of taller plants or crops.
Technologies
Equipment
Business sectors
Our commercial greenhouses meet the needs of these business sectors : vegetables, fruits and ornamental, along with institutional and commercial. Discover how they’re used in your business sector.
Vegetables, fruits and ornamental greenhouses
Greenhouses adapted to fruit and vegetable crops, flowering plants, perennials, annuals and tree nurseries.
See moreInstitutional greenhouses
Greenhouses designed to meet the specific needs of educational and research projects.
See moreCommercial greenhouses
Greenhouses perfectly adapted to the retail industry by enhancing the consumer experience and producer profitability.
See moreFAQs about Gutter-Connected Greenhouses
What is a gutter-connected greenhouse?
A gutter-connected greenhouse is a structure composed of multiple greenhouse bays that are connected at the gutters, forming a single large growing space. This design allows for more efficient use of space, better environmental control, and easier management of large-scale operations.
What are the advantages of a gutter-connected greenhouse?
The key advantages of gutter-connected greenhouses include efficient use of land, enhanced light distribution, and improved climate control due to their large, continuous growing area. They are ideal for large-scale operations, offering flexibility in automation and ventilation. Additionally, they allow for easier expansion, as more bays can be added without needing separate structures.
How to attach guttering to a greenhouse?
To attach guttering to a greenhouse, secure the gutter system along the edge of the roof where the bays meet, ensuring it slopes slightly for water drainage. Use brackets or clips to attach the gutter to the structure, and seal joints with silicone or other waterproofing materials to prevent leaks. Always ensure the gutter is properly aligned and supported to handle the water load.
How do you collect rainwater from a greenhouse?
Rainwater can be collected from a greenhouse by installing a gutter system along the roofline. The gutters channel the rainwater into downspouts, which can then be directed into water storage tanks or rain barrels. This water can be reused for irrigation, making the greenhouse more sustainable and cost-effective by reducing reliance on external water sources.
